Injection moulding machine BOY 50 E LSR
Exhibitor
Dr. Boy GmbH & Co. KG
• Euromap size: 500-56 / 500-69 / 500-82 / 500-170
• Clamping force: 500 kN
• Screw diameter: 18, 22, 24, 28, 32, 38, 42 mm
• Max. stroke volume: 173.2 cm³ (theoretical)
• Injection volume flow: 207.8 cm³/s (theoretical)
• Max. spec. injection pressure: 2.739 bar
• Max. daylight between platen: 650 mm
• Max. opening stroke: 400 mm
• Distance between tie bars: 360 x 335 mm

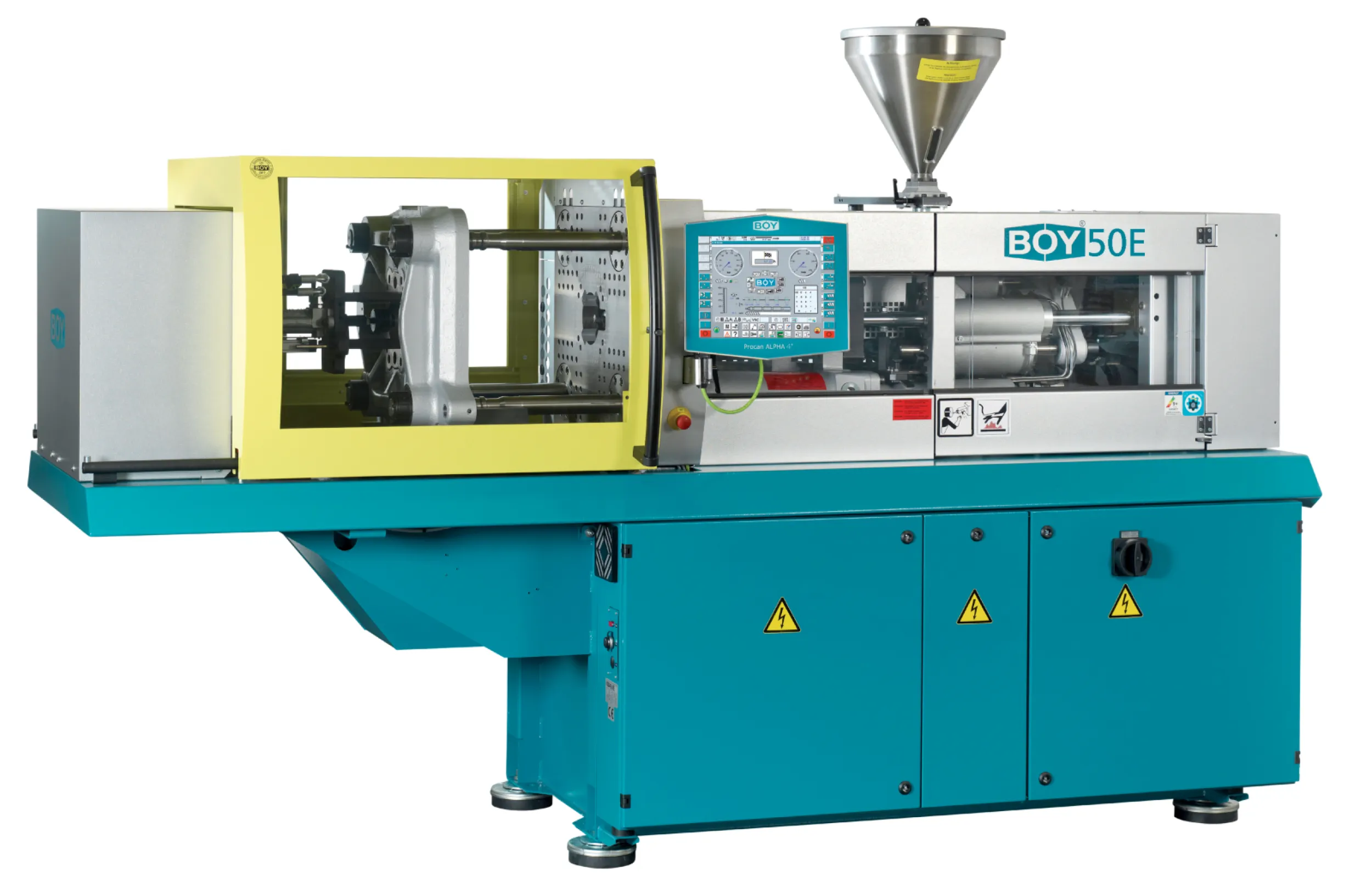

BOY 50 E
